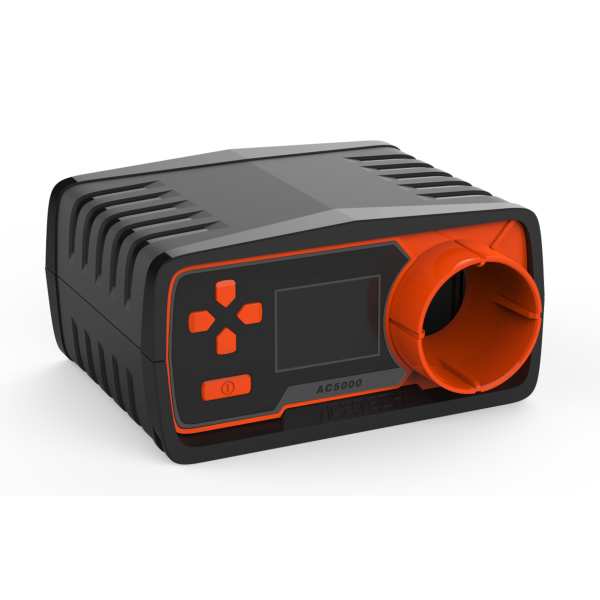

AC5000

Airsoft Chronograph

◎ AC5000 is an airsoft chronograph with high quality and accuracy

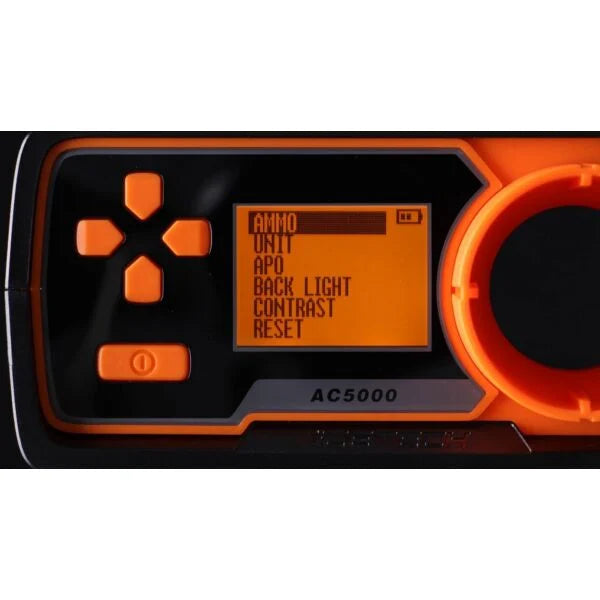

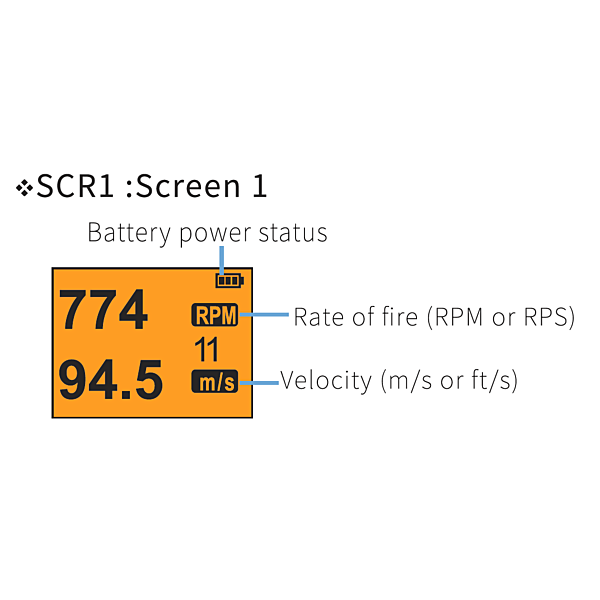

◎ User-friendly interface with 128*64 LCD.
◎ Support Micro-USB(5V/0.5A) power input(no
battery charge function) or Use AA battery*2
◎ Ammo parameter setting supports 5 memory slots

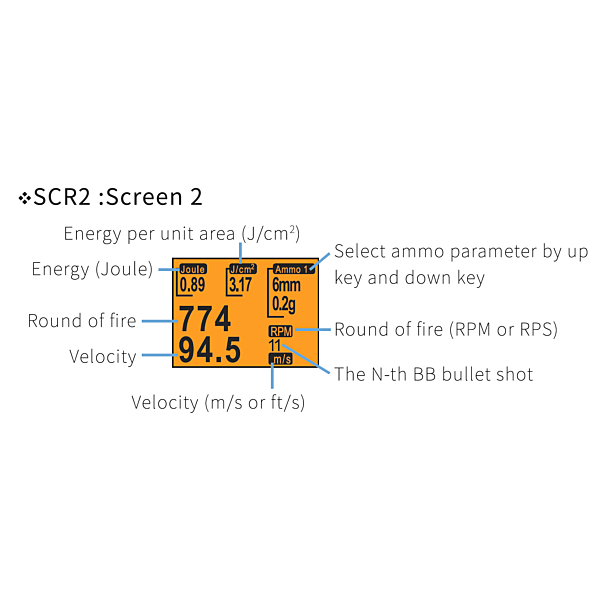

◎ AMMO 1~5 parameter can be selected on SCR2.

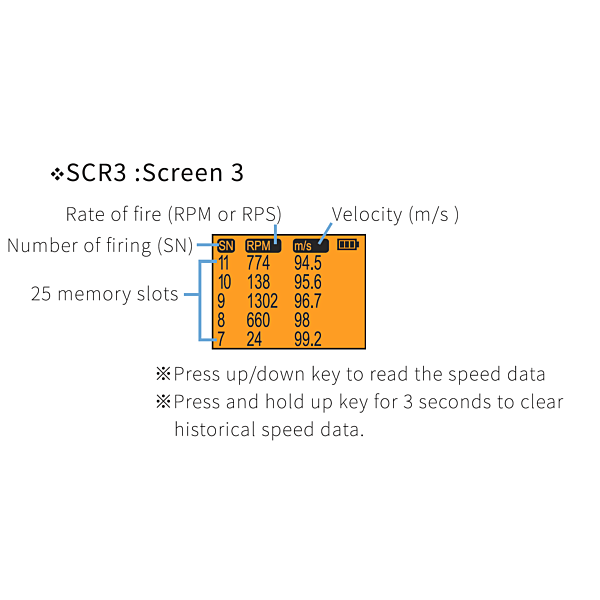

◎ 25 memory slots for velocity and ROF
(Rate Of Fire)
◎ Idling and low battery auto power off function.
◎ Tripod ready mounting hole (standard
camera screw / camcorder tripods )
◎ Large caliber for 24mm, suitable for
different BB Spec. 4.5mm, 6mm, 9mm, 18mm.
*More durable: IR sensor self-calibration as well as IR sensor calibration in production
*Easier to control: Equipped with 4-way push button
*Friendly UI: Enables user directly select and change ammo parameters in main screen
*Safer to use: FCC, CE, RoHS compliant

SPECIFICATIONS

• Measures Muzzle Velocity

  From 30 m/s ~ 400 m/s (90 ft/s ~ 1200 ft/s).

• ROF range

  100~5000RPM

• Tube diameter

  24mm

• Tripod Ready mounting hole

  Screw for standard camera / camcorder tripods

• Batteries

  AA battery*2

• Other power input

  Micro-USB charging port (5V/0.5A) (no battery charge function)

• Weight

  200g without battery

• Dimension

  L x W x H = 117 x 97 x 59 (mm)

• User-friendly interface

  128*64 LCD

• Memory slots for velocity and ROF (Rate Of Fire)

  The latest 25 shots

• Ammo parameter setting

  Supports 5 memory slots

• Auto power off function

  Automatically turning off when idling or in low battery

• Tripod ready mounting hole

  standard camera screw / camcorder tripods

• Large caliber

  24mm, suitable for different BB Spec. 4.5mm, 6mm, 9mm, 18mm.
