LIPO/LIFE/LI-ION (2S/3S) NIMH/NICAD (4S/8S) BATTERY CHARGER

• Charge LiPo (Lithium Polymer) Batteries 2s-3s (LiPo 7.4v - 11.1v)

• 100v-240v AC Power Input

• Fitted EU Plug with UK Adapter provided

• Charge Current (2.0A) – chargers a fully depleted 1600mAh NiMh battery in 1 hour

• Charge Current (2.0A) – charges a 75% depleted 1450mAh LiPo battery in 30 minutes

The LiPo/LiFe/Li-Ion (2s/3s) NiMH/NiCad (4s/8s) Battery Charger is capable of charging a number of different Lithium & Nickel based batteries for the hobby enthusiasts industries such as Airsoft & RC Vehicles. Apart from being able to charge 5 different battery types, its greatest feature is its ease of use. Simply plug your Lithium power cells into the charger via the batteries balance lead, select the battery type using the buttons on the front and charging commences. For Nickel Battery Types, use the 4-Pin Balance Port to Small Tamiya Adapter lead to connect the battery.

What is in the box?

(x1) LiPo/LiFe/Li-Ion (2s/3s) NiMH/NiCad (4s/8s) Battery Charger

(x1) 4-Pin Balance Port to Small Tamiya Adapter Lead

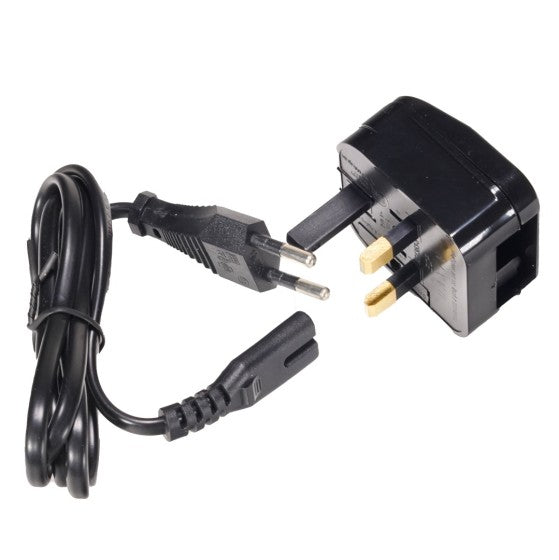

(x1) EU Power Lead + UK Plug Adapter

LiPo Safe Use Warning

WARNING – Strict instructions must be followed to ensure the safe use of Lithium-Polymer Cell batteries.

1. Use a LiPo Balance Charger ONLY!

2. Ensure the Balance Lead is connected when charging.

3. Always use a Fire-Retardant LiPo Charging Bag when Charging Battery.

4. Never leave LiPo Batteries charging unattended.

5. Always check cell voltages before and after charging - Minimum Cell Voltage (3.3v), Maximum Cell Voltage (4.2v).

6. Maximum Charing Current of 3C.

7. In the event that Battery Cells show signs of swelling/ expansion or the surface temperature is in excess of 70°c you must disconnect and stop using the battery. Failure to comply may result in the rapid venting of the battery cells which can lead to fire and explosions.

(x1) Instruction Manual
