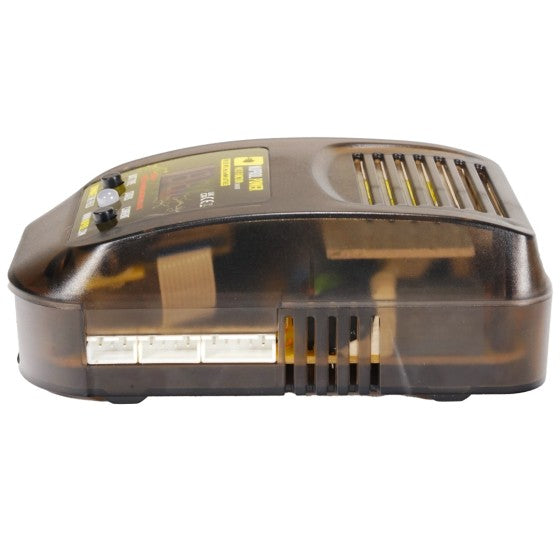

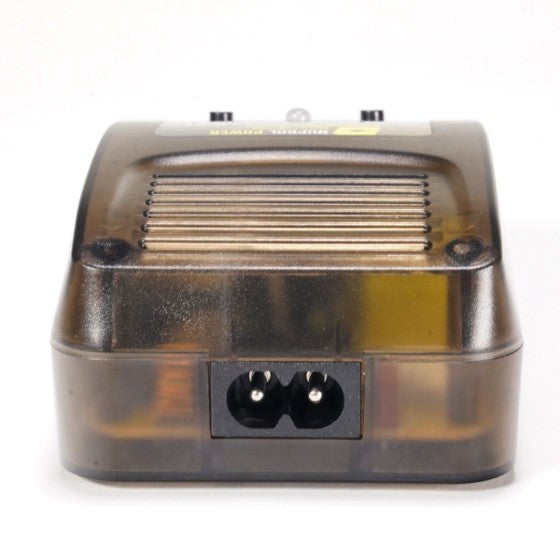

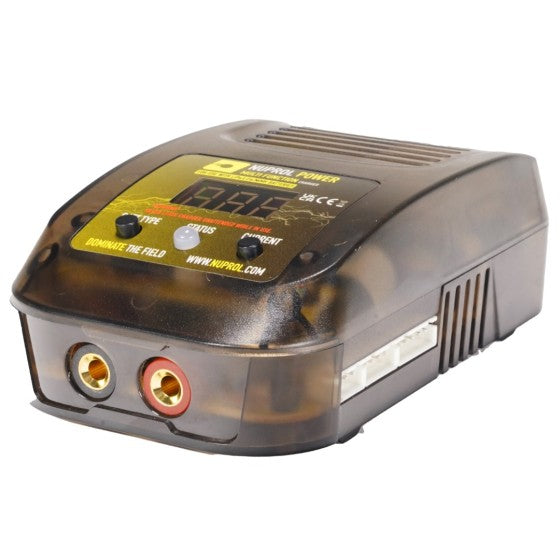

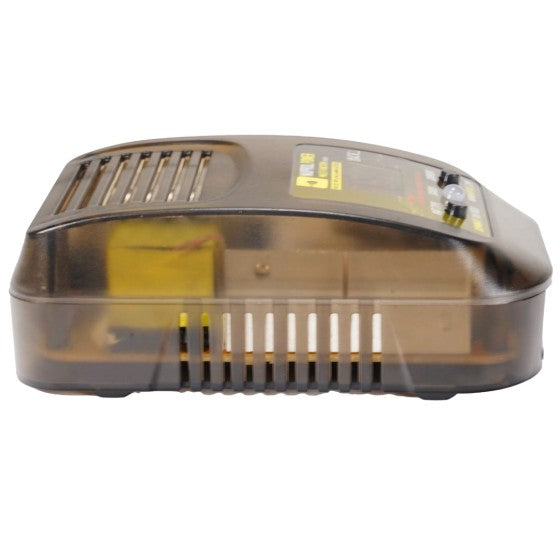

NIMH/LIPO/LIFE (2S/3S/4S) LED DISPLAY MULTI FUNCTION BATTERY CHARGER

• Charge Lithium LiPo/ LiFe/ Li-Hv Batteries 2s-4s (LiPo 7.4v - 14.8v)

• Charge Nickel NiMH/ NiCad Batteries 4s-8s (4.8v - 9.6v)

• 100v-240v AC Power Input

• Fitted EU Plug with UK Adapter provided

• Variable Charge Current 0.5A multiples (0.5A to 4.0A)

• At 4.0A, chargers a fully depleted 1600mAh NiMh battery in 30 minutes

• At 4.0A, charges a 75% depleted 1450mAh LiPo battery in 20 minutes

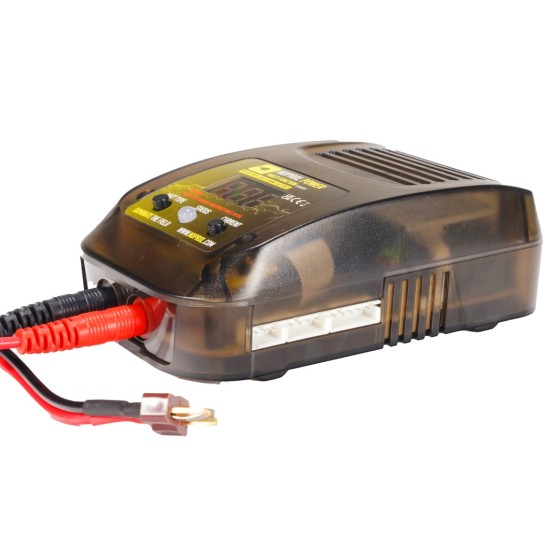

• Deans (T-Connector) Charge Lead with Deans to Small Tamiya Adapter

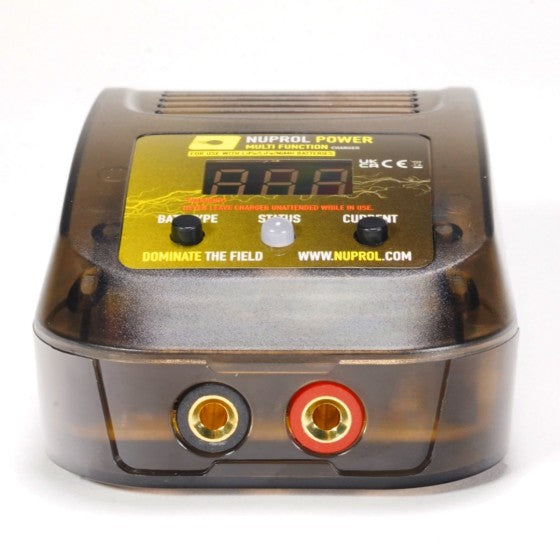

• Digital Display providing Battery Charge % per cell

The NiMH/LiPo/LiFe (2s/3s/4s) LED Display Multi Function Battery Charger is all the charger a general hobby enthusiast needs to power their Airsoft AEGs, RC Vehicles, Drones and more. Capable of charging both Lithium (7.4v – 14.8v) & Nickel (7.4v – 9.6v) based batteries, the charger is supplied with a Deans (T-Connector) and Small Tamiya connectors so you can charge the vast majority of power packs for Airsoft & RC general use. The respectable charge current of up to 4.0A will help keep your downtime as short as possible whilst waiting for your battery to return to full-charge. If you’re inpatient, the digital display will show current charge percentages to help you decide that actually “80% is OK”, and get back to playtime.

What is in the box?

(x1) NiMH/LiPo/LiFe (2s/3s/4s) LED Display Multi Function Battery Charger

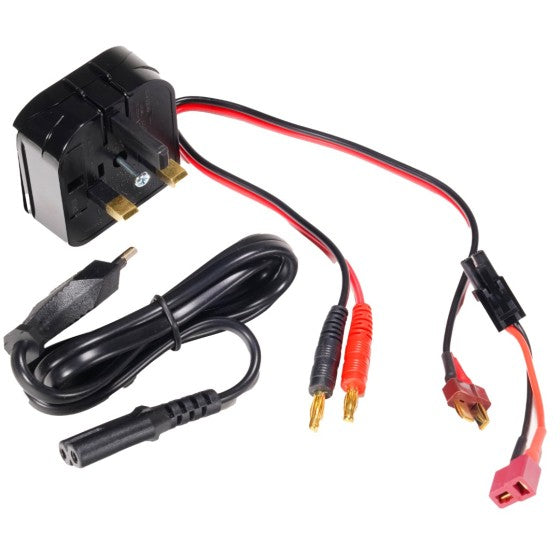

(x1) Deans (T-Connector) Primary Charge Lead

(x1) Deans (T-Connector) to Small Tamiya Adapter Lead

(x1) EU Power Lead + UK Plug Adapter

(x1) Instruction Manual

LiPo Safe Use Warning

WARNING – Strict instructions must be followed to ensure the safe use of Lithium-Polymer Cell batteries.

1. Use a LiPo Balance Charger ONLY!

2. Ensure the Balance Lead is connected when charging.

3. Always use a Fire-Retardant LiPo Charging Bag when Charging Battery.

4. Never leave LiPo Batteries charging unattended.

5. Always check cell voltages before and after charging - Minimum Cell Voltage (3.3v), Maximum Cell Voltage (4.2v).

6. Maximum Charing Current of 3C.

7. In the event that Battery Cells show signs of swelling/ expansion or the surface temperature is in excess of 70°c you must disconnect and stop using the battery. Failure to comply may result in the rapid venting of the battery cells which can lead to fire and explosions.
